Configuring and Customizing Navigatrix

One of Navigatrix strength is that it just works out of the box, without the need for constant updates and patches. However, you may want to customize some of its features and/or to install additional software. To do so, it helps to understand a little about how Navigatrix is set up and where its various components can be found.

The LXDE Desktop

The core of Navigatrix is a Unix flavor called Linux and among the available sub-flavors of Linux Navigatrix is based on Ubuntu. Naked Unix interacts with the user through a command line interface (think “DOS terminal window” in Windows) and Navigatrix runs what is called a “desktop environment” on top of the command line interface to provide a Windows-like user interface (tuned for simplicity, speed, and robustness which makes it look a bit different). The desktop environment Navigatrix uses is called the LXDE (for “Light X11 Desktop Environment”, X11 being a “window standard” under unix) which is open source software designed specifically to be very light-weight (i.e. being spartan in its use of system resources). LXDE is started when you boot Navigatrix and it provides the desktop interface, the panel at the bottom of the screen with menu (the manta symbol - equivalent to the Windows “Start” menu”), application launch bar, task bar (windows list), and a system tray. All of these will all look familiar to Windows users. It relies on Openbox (a subsidiary program) as a window manager which renders the windows and menus that applications need for their user interfaces. In addition, it uses PCManFM as a light-weight file manager with a similar look and feel as the Windows file manager.

You can customize most elements of LXDE (e.g. appearance, what short-cut icons to show in the application launch bar) by right-clicking on the corresponding element and then choosing the relevant “Settings” item. The resulting dialogues should be largely self-explanatory.

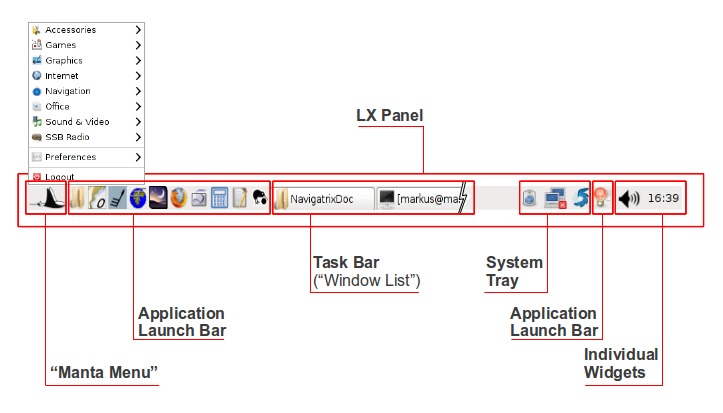

LXDE Panel Components

Note that the application icons in the Application Launch Bar are different from the Navigatrix-default because the screenshot was taken with a customized version of Navigatrix.

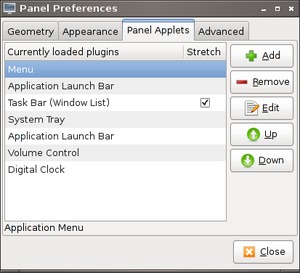

The picture below shows an example of the overall Panel Preferences dialogue (right click on any section of the panel and chose Panel Settings).

Panel Preferences Dialogue

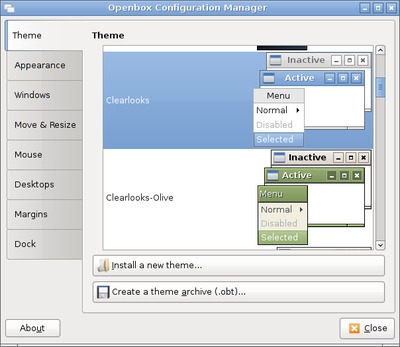

To change the appearance and behavior of windows (colors, placement of controls, border sizes, ...) you can use the Openbox configuration manager which is available under the Manta Menu -> Preferences -> Configuration Manager.

OpenBox Configuration Manager

Other appearance settings (e.g. widget style, icon theme) can be adjusted under Manta Menu -> Preferences -> Appearance Settings.

Running and Configuring Applications under LXDE

An important aspect of LXDE is how it provides access to the applications that come with Navigatrix (or others which you may install). The figure below shows an overview of how the different bits and pieces interact in this context.


LXDE Configuration Overview

Application Executable Files

Applications under Navigatrix are executable files (think DOS/Windows *.exe) that reside in three different directories (see box “Application Executable Files” in the figure above):

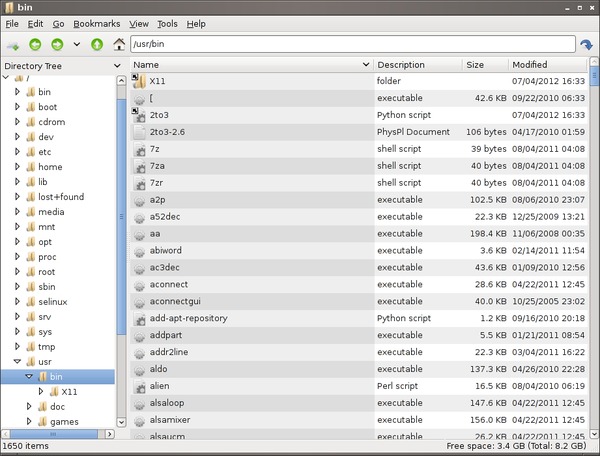

  • /usr/bin/ hosts most of the applications that are accessible via the Manta Menu, plus many subsidiary and utility programs.

    /usr/bin/ contents

  • /opt/ contains a few additional programs like the zyGrib GRIB viewer and the Calibre library manager. It also contains the virtual “C: drive” that is used by Wine, the Windows emulator that enables you to run Windows programs under Unix (see Installing Windows Applications).

    /opt/ contents

  • usr/local/bin/ contains the executable file for the OpenCPN chartplotter (admittedly a bit of an odd placement, because this directory is mainly used to store wrapper shell scripts; see below).

Application Wrapper Shell Scripts

When you call many of these applications via the Manta Menu, Navigatrix does a little additional housekeeping prior to actually launching the application executable file. For example, Navigatrix may update the applications configuration file with your latest GPS position (see GPS and Navigatrix). This housekeeping is done by shell scripts (think Windows \*.BAT files) that provide a “wrapper” around the actual application. These shell scripts are stored under /usr/local/bin/ (see box “Application Wrapper Shell Scripts” in the LXDE Configuration Overview figure above).

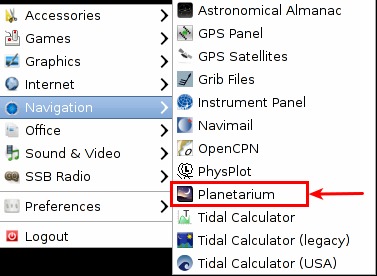

To illustrate this, let’s look at the Planetarium application that can be accessed via Manta Menu -> Navigation -> Planetarium.

Planetarium in Manta Menu

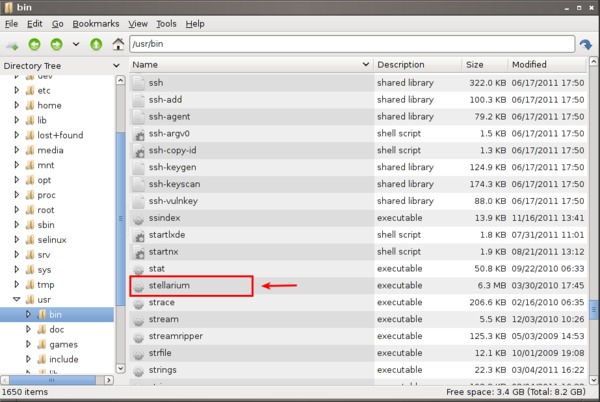

The Planetarium application shows where stars and planets can be seen in the sky from a chosen location and at a chosen time.  By default, the time is the current system time in the current time zone (these can be adjusted under Manta Menu -> Preferences -> Time and Date). The location can be picked from a list of locations which the application reads from a configuration file. The actual application executable is called stellarium and resides under /usr/bin/:

Stellarium executable in /usr/bin/

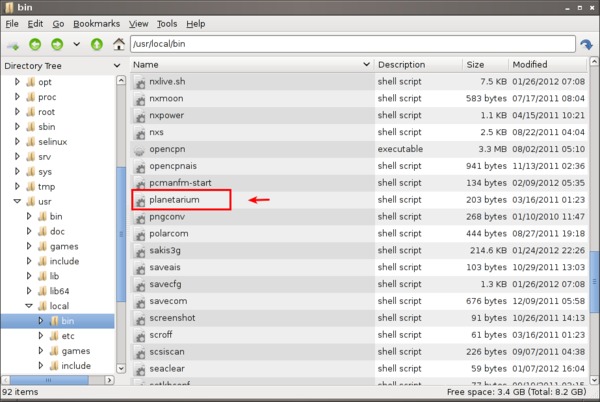

However, when you click on Planetarium item in the Manta Menu, you actually call a shell script called planetarium, that resides under /usr/local/bin/:

Planetarium shell script in /usr/local/bin/

The contents of this shell script is relatively simple (you can look at it yourself by right-clicking on the planetarium file and choosing Open With... -> Text Editor). There is no need to understand the details of the script but it helps to illustrate the concept at a high level.

echo >$cfg -e "Navigatrix GPS Location\\t\\tAutomatic\\t\\x00\\t147127\\t"$(cat /etc/"\\t"$(cat /etc/nx.lon)"\\t3\\t2\\t\\tEarth\\t"

Line 1 simple defines that this file is a shell script. Lines 2 and 3 then apply some clever manipulation to insert your most recent GPS position in one of the configuration files that Stellarium reads when it starts up. Line 4 finally launches the stellarium application executable which will now read the updated configuration file and show you the sky as it looks from your most recent GPS position. Navigatrix does this kind of “position housekeeping” for quite a few applications - a very handy feature on a computer that is used for navigation on a moving vessel.

LXDE Desktop Configuration Files

The link between the application wrapper shell script and the Manta Menu (or between the application executable and the Manta Menu for applications that don’t have wrappers) is established via so called desktop configuration files with the extension .desktop. These reside under /usr/share/applications/. One such file exists per application that is to be accessed via the Manta Menu or the LX Panel’s launch bar. The figure below shows the /usr/share/applications/ directory with Stellarium’s desktop configuration file highlighted. Note that for these files the file manager displays not the actual filename (which in this case is stellarium.desktop) but the application title that is defined in the file (which is “Planetarium”, see below).

planetarium.desktop file /usr/share/applications/

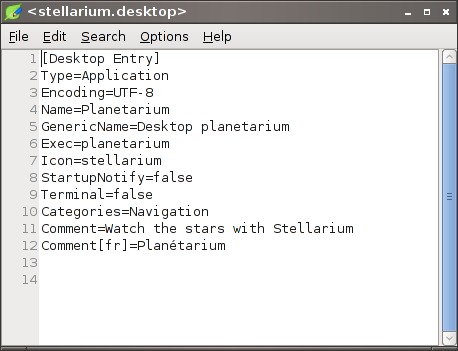

If you open the file manager, go to /usr/share/applications/, right-click on “Planetarium”, and choose Open With ... -> Notepad, you will see the filename stellarium.desktop displayed in the editor’s title bar:

planetarium.desktop in editor

The first three lines look the same in all the desktop configuration files in Navigatrix:

  1. [Desktop Entry] at the top of the file indicates that this is a \*.desktop file.
  2. The Type entry simply states that this configuration file points to an application.
  3. Encoding defines that UTF-8 character encoding is used.

The next entries are specific to Planetarium / Stellarium:

  1. Name defines that this application will show up as “Planetarium” in the Manta Menu. This is also the name under which the file manager displays the desktop configuration file.
  2. GenericName provides a description for the menu entry.
  3. Exec points to the program that is to be launched for this application. In this case it is the planetarium shell script wrapper, which will update the position information as described above and then call the stelllarium application executable file. Note that there is path in front of “planetarium” because the directory /usr/local/bin/ (as well as /usr/bin/) is part of Navigatrix’ “search path”, i.e. the list of directories where it will look for executable programs if no path is provided.
  4. Icon points to an image file to be used as the application’s icon in the Manta Menu and the Launch Bar. Navigatrix stores these icon image files under /usr/share/pixmaps (you can find the file stellarium.xpm there). No path and no file extension is required if the icon can be found in this directory.
  5. StartupNotify=false defines that startup notification is turned off.
  6. Terminal=false states that the program will not run in a terminal (This is the setting for all applications that provide their own GUI).
  7. Categories defines the category under which the application will be displayed in the Manta Menu (“Navigation”) in this case. Multiple categories can be specified for one application, with individual entries separated by a semicolon (e.g.  Categories=Navigation;Education).
  8. Comment defines a descriptive text that is displayed as a “tool tip” when the mouse pointer hovers of the corresponding entry in the Manta Menu.
  9. Comment [fr] defines the descriptive text when Navigatrix is run in French.

Once you have created a desktop configuration file for an application under /usr/share/applications/ (or usr/local/share/applications/ which is a good place to put desktop configuration files you may create yourself in order to keep them apart from the ones that come with Navigatrix), the application will show up in the Manta Menu and also be available in the configuration dialogues for the Panel’s Launch Bar. Note that the list of applications on the left is different from the Navigatrix-default because the screenshot was taken with a customized version of Navigatrix:

Planetarium entry in Application Launcher

Installing Additional Software

For the sake of this Short Introduction we can distinguish three principal ways to install additional applications under a Linux-based system like Navigatrix:

  1. Compiling the application from source code: Though it is by no means “magic”, this is beyond the scope of this Short Introduction. In fact, if you’re thinking about compiling from source, you probably won’t be reading this anyway...
  2. Installing binaries from a Linux repository: This installs an already compiled (= binary) version of an application, similar to the way you would install software under MS Windows. However, these application binaries are maintained in and available from software repository servers. The concept of software repositories and how to access these is explained below.
  3. Installing MS Windows applications under “Wine”, a compatibility layer for running Windows applications on Linux. This will also be covered below.

Installing Applications From a Linux Repository

Under Linux, software is organized in “packages” which are maintained in repositories on central serves. Linux systems (such as Navigatrix) come with a Package Manager that allows you to interface with these repository servers and to manage adding and removing software to and from your system in an “orderly fashion.”

This is a bit different from what you may be used from a MS Windows environment. There, a software application is typically distributed by a commercial vendor as a self-contained collection of files which are shipped on a CD/DVD together with some executable installer program that can be run to install the files in that collection as a new application. You basically trust the vendor that installing its application in this manner will not negatively impact any existing functionality on your system and not be at logger heads with other applications you have installed.

Linux takes a slightly different approach to software installation. Applications (which have typically been developed as open source projects) will be added to a central software repository by “the community” or commercial distributors and are available for download and installation from designated repository servers. These repositories also maintain all the dependencies between different packages. When you request an application from a repository, the process (which is explained further below) will automatically check if there are any subsidiary packages that the requested application relies on and which have not been installed on your system yet. It will then include these subsidiary packages into the download and the installation. This more centralized approach to software distribution somewhat reduces the risk of different applications causing each other trouble. If there is a chance for conflict (for example, because two applications require different versions of the same subsidiary package) you will be notified of the issue prior to the installation and can at least make an informed choice.

This may all sound complicated but is actually quite straight forward once we look at the tools involved and an example further below.

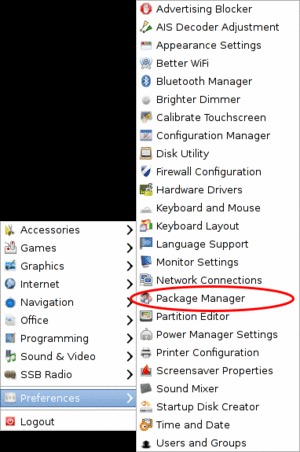

The tool used to connect to software repositories and to download and install software packages is the “Synaptic Package Manager” which is accessible from the Manta Menu under Preferences->Package Manager

Synaptic in Manta Menu

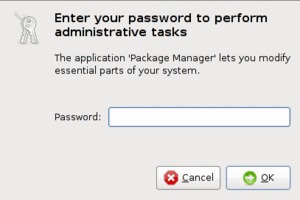

To run the Package Manager you will need administrative (“root”) privileges. When you launch the application you will therefore be prompted for the password that you defined when installing Navigatrix (provided you haven’t changed it since then).

Password entry

A word of caution here: With great power comes great responsibility. The Package Manager allows you to perform changes to the core of your system. You can render your system unusable by using the Package Manager carelessly. This should not be an issue as long as we’re simply talking about adding, updating or removing applications and are not messing with the system core. Just make sure you understand what you are doing in each step when working with the Package Manager.

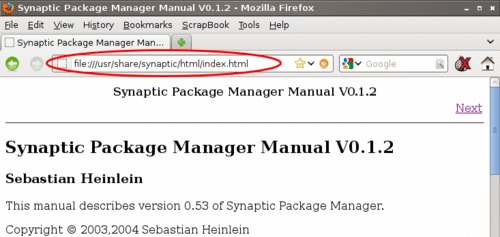

There is detailed documentation for the Package Manager that comes with your Navigatrix installation. We will therefore only illustrate its use by walking through a simple installation example which should be sufficient to get you started. For more detailed information you can access the offline manual at /usr/share/synaptic/html/index.html (type file:///usr/share/synaptic/html/index.html into your browser’s address bar).

Synaptic manual

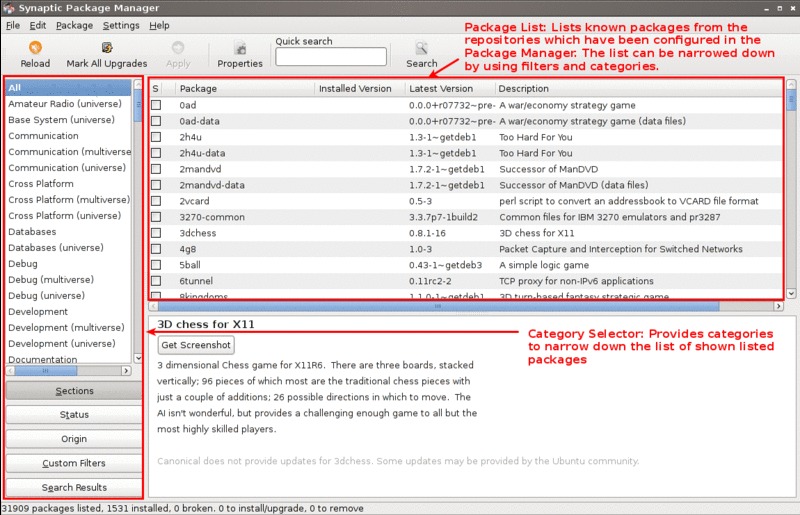

But now back to the Package Manager’s main window which will open up after entering your password:

Synaptic main window

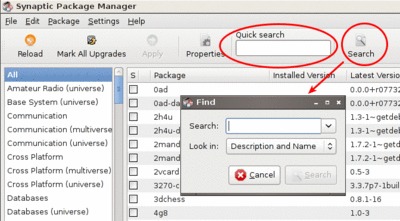

The Package List on the top right shows the software packages which are available from the repositories that are configured in the Package Manager (see the manual for details on how to configure additional repositories should you ever need to do so [1]). You can narrow this list down by using the Category Selector on the left of the main window. Alternatively, you can search for packages by either entering a search term in the “Quick search” box on the toolbar or by clicking the “Search” icon to the right of the Quick search box:

Synaptic search

For our example, let’s assume we want to install Lingot, a handy little musical instrument tuner that picks up a tone via your computer’s built-in microphone and shows you whether you’re on or off tune. Its interface looks like a guitar tuner but it can be used for any instrument - including the on-board piano. You will need an Internet connection to try this. The application is very small (download size < 100 kB) so even a marginal connection should do (if you have one of those you may wish to skip the refresh of the Package List in the next step).

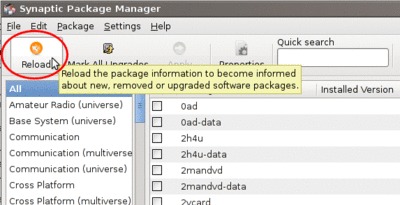

Before we go and look for Lingot in the Package List it is advisable to reload the list of available packages from the repository servers. Otherwise what you see in the Package Manager’s Package List may be out of date and not accurately reflect what’s on the server. To update the list of available packages simply press the “Relaod” button on the toolbar:

Synaptic reload

This will take a moment and show you a progress window while it is downloading the latest package information.

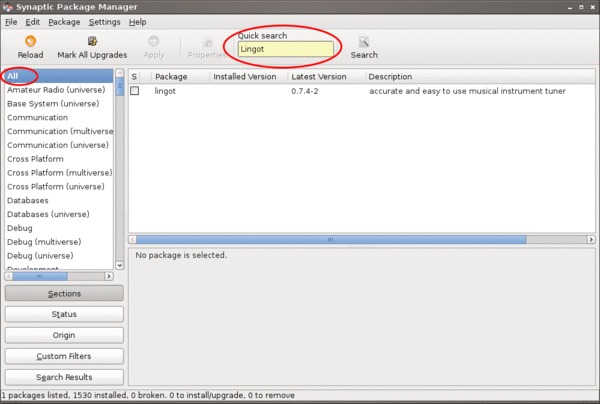

Once it is done type “lingot” (without the quotes, capitalization doesn’t matter) in the Package Manager’s “Quick search” bar. Make sure that you have selected “All” in the Category Selector on the left in order not to filter out Lingot from the search results. The Package list will now only show you the one matching entry for Lingot:

Lingot search result

The left-most column you see in the Package list window (the one labeled “S” - assuming you haven’t changed this yet under Settings->Preferences->Columns and Fonts) shows the package’s status. The empty little box you see in the example indicates that this package has not been installed on your computer yet. (For a list of the possible stati and their corresponding icons you can look under Help->Icon Legend.)

The empty column between the status indicator and the package name indicates the level of support provided for this package. If it’s empty it means that you cannot rely on this package being maintained in the repository in the future but this doesn’t bother us in this example.

The next columns simply list the package name, the installed version (in case the package displayed is already installed on your machine), the latest available version in the repository, and a short description.

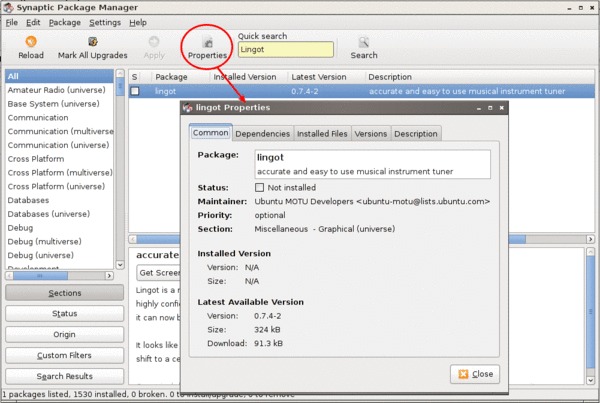

To see more information about a package, simply select it in the package list and click on the Properties button in the toolbar:

Lingot properties

The tabs in the properties window should be self-explanatory. It’s worth looking at the “Dependencies” tab which lists all the other packages that Lingot will require to run. These are typically software libraries that provide basic functionality shared by many applications. Most of these will likely already be installed on your system. If not, the Package Manager will automatically include them in the download and install them together with Lingot.

Now let’s close the properties window and proceed with the actual installation. This is a two-step process:

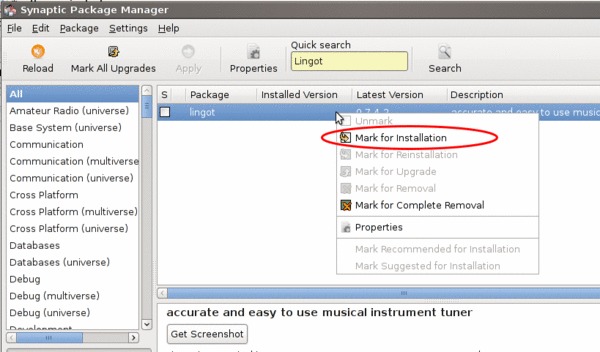

  1. Mark the package for installation. To do so, right click on the package in the Package List and select “Mark for installation”.

    Marking Lingot for installation

    This will change the icon in the “Status” column which will now display the “Marked for installation” symbol:

    Marked for installation icon

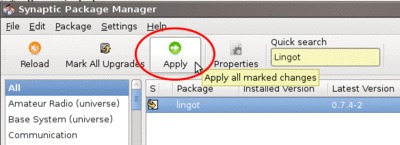

  2. To actually start the download and installation of Lingot now click on the “Apply” button in the toolbar:

    Applying marked changes

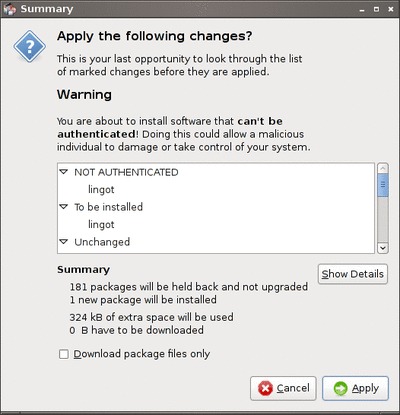

    This will bring up a window summarizing the changes that will be made to your system if your proceed with the installation:

    Summary of changes before installation

    In this case we’re being informed that the package cannot be authenticated (which - for all we know - is OK in this case), that one package is to be installed (lingot), and that a whole load of subsidiary package will remain unchanged because they’re already installed. Depending on what’s already installed on your system this listing may look slightly different if you try this on your computer.

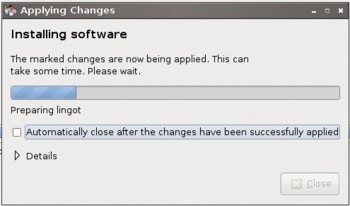

    Clicking on “Apply” will start the download and installation during which the progress window below will be displayed:

    Installation progress

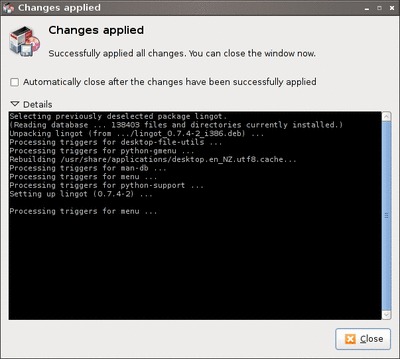

    Once it’s done it will display a confirmation that all changes have been applied:

    Installation complete

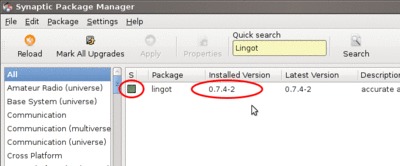

    Notice that the Lingot entry in the Package List now shows the icon for “Installed” in the status column and that it now lists an installed version:

    Package list after installation

That’s it. You should now see Lingot as an entry in the Manta Menu under Sound & Video:

Lingot inn the Manta Menu

A few comments before you get out the guitar / ukulele or whatever you use on board for musical entertainment:

  • Software Repositories may also reside on CDs/DVDs or in a directory within the file system on your computer. These can be configured in the Package Manager in the same way as the pre-configured repository servers used in the example above. Check the Package Manager’s offline manual for details.

  • The Synaptic Package Manager is in essence simply a graphical user interface to a command line tool called “apt-get”. In many places in the Navigatrix Support discussion database you will find instructions stating something like “... at the terminal prompt type sudo apt-get install ... followed by the name of some software package. This triggers the same download and installation process as in the example above but is a bit quicker if you know the name of the package you need to install and you don’t mind working in a terminal window (after all - “In the beginning was the command line”...).

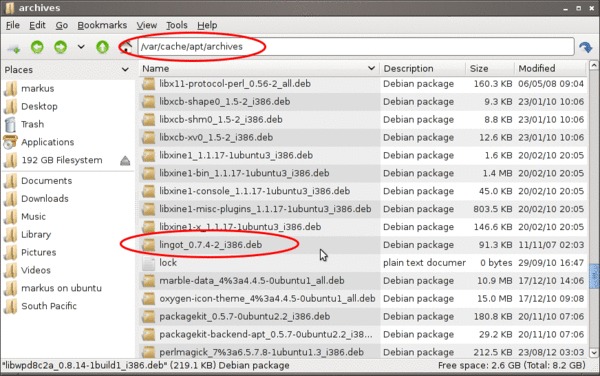

  • Downloaded packages are kept in a local archive on your computer in /var/cache/apt/archives/:

    APT archive in File Manager

  • Note that these are not the actual application executable files but the downloaded packages from which the actual application files were extracted.

  • If you need to re-install something while being at anchor, in a location without Internet access, you can fall back on this archive. Let’s say you have removed Lingot after going through the example above (via the Package Manager - simply right-click on an installed package and select Mark for Removal rather than Mark for Installation). But now you have picked up a ukulele on some remote Polynesian island (no Internet) and need the tuner again. Press [ctrl]+[alt]+[T] to open a terminal window and at the prompt type

    sudo apt-get -m --no-download install lingot
  • This will re-install the software from the local archive in /var/cache/apt/archives/. The sudo is required to run the apt-get with administrator (“root”) privileges (and will therefore prompt you for your password). The -m option tells The apt-get to ignore any missing subsidiary packages (which you may not have in your local archive) and to hope for the best. Make sure you type one minus sign in front of the “m” and two minus signs in front of the “no-download” option with no paces between the minus signs and the following option.

  • In a pinch you can also use these downloaded packages to share an application with another disconnected boat at anchor (however, missing subsidiary packages on which the application depends may cause an issue in this case). You can give your neighbour a USB stick with the relevant package file (ending in .deb). The neighbour - also running Navigatrix or another Linux flavour - can copy this file to his or her hard disk, open a terminal window, and type:

    sudo dpkg -i /[complete path to the package file]/[complete name of the package file]
  • dpkg is another command line tool used to install Debian packages (the ones that end in .deb). In the example above we could have also re-installed Lingot by typing

    sudo dpkg -i /var/cache/apt/archives/lingot\_0.7.4-2\_i386.deb

    at the terminal window’s command prompt. Note that the latter approach via dpkg requires the full path and filename whereas apt-get only uses the package name (“lingot” rather than the file name lingot\_0.7.4-2\_i386.deb). Also note that the Synaptic Package Manager application must be closed when running dpkg. Otherwise dpkg cannot access the status database that keeps track of the various packages’ status on your computer (not-installed, installed, ...).

  • Finally, a word about upgrades. The Package Manager also provides an option to mark all possible upgrades for installation. This will check for all your installed packages if a newer version is available from a repository and, if so, mark this newer version for installation (you can also do this for individual packages). Use this option only with extreme care and only if you have a good reason to replace an existing package by a newer version. The software industry has been very good at conditioning us to believe that “upgrade = newer = better” - which in many cases is simply not true and/or heavily depends on what you intend to do with an application. If an application is stable and does what you need it to do, replacing it by a newer version will - in many cases - not gain you anything but introduce a less mature and less stable product. The applications that ship with Navigatrix have been carefully put together to do what they need to do without getting in each others’ way. Hence Navigatrix may not include the latest available version of an application but one that is robust and works with all the other stuff in Navigatrix. Keep this in mind before upgrading to newer versions of packages (for which there may be good reasons in specific cases).

Installing Windows Applications

Coming soon, currently under construction ...


[1]Depending on your location you may want to change the default repository in Synaptic in order to connect to a server that’s not halfway around the world. In the Package Manager, under Settings->Repositories, you can pick a repository server that is closer to your location by clicking on the Download from: drop-down box. This will also provide you with an option to have the application automatically pick an optimal server fro your location.
